1mΩ(0.001 Ohm) 2512 Current Shunt Resistor 6W ±1% ESR Ellon High Precision SMD

Place of Origin: Made in China
Brand Name: Ellon
Certification: RoHS / REACH
Model Number: ESR25F6WR001M04G
Product Details
Place of Origin:
Made in China
Brand Name:
Ellon
Certification:
RoHS / REACH
Model Number:
ESR25F6WR001M04G
Minimum Order Quantity:
4000
Price:
Negotiable
Standard Packaging:
4000
Delivery Time:
3-5 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Features:
High Power, Low Inductance
Manufacturer:
Ellon
Series:
ESR
Size:
2512
Resistance Range:
1mΩ(0.001 Ohm)
Tolerance:
±1%
Power Rating:
6W
Operating Temperature Range:
-55°C To +175°C
Temperature Coefficient:
±100 Ppm/°C
Material:
MnCu
Termination Style:
SMD
Per Reel:
4000
Applications:
Current Sensing, Power Supplies, Motor Control, Battery Management
Highlight:

1mΩ 2512 current shunt resistor

,

6W high precision SMD resistor

,

Ellon ±1% ESR shunt resistor

Product Description
1mΩ (0.001 Ohm) 2512 Current Shunt Resistor 6W ±1%
2512 Size 0.001Ω (1m Ohm) 6W Metal Shunt Chip Resistor for Power Supplies and Motor Control. This 2512 current shunt resistor from Ellon ESR series delivers 1mΩ(0.001 Ohm) resistance with ±1% tolerance and 6W rated power, giving designers a compact surface-mount part that maintains consistent performance under varying load and temperature conditions.
Technical Specifications
ManufacturerEllon
SeriesESR
Size2512
Resistance Range1mΩ (0.001 Ohm)
Tolerance±1%
Power Rating6W
Operating Temperature Range-55°C to +175°C
Temperature Coefficient±100 ppm/°C
MaterialMnCu
Key Features
  • Stable 6W rated power handling for demanding circuits
  • ±1% tolerance for dependable measurement accuracy
  • Low ±100 ppm/°C temperature coefficient that maintains stable values as temperature increases
  • MnCu element material for consistent, repeatable performance
  • Compact 2512 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This current shunt resistor is ideal for Current Sensing, Power Supplies, Motor Control, and Battery Management systems. Its MnCu construction and stable electrical characteristics help designers achieve tight tolerances in current sensing, power conversion, and protection circuits, while the 2512 package maintains a compact layout footprint.
Quality & Packaging
Supplied on tape and reel for automatic pick-and-place assembly in standard reel quantities for SMT production lines. Every shipment is RoHS and REACH compliant and includes electrical testing verification. Certificate of compliance available upon request.

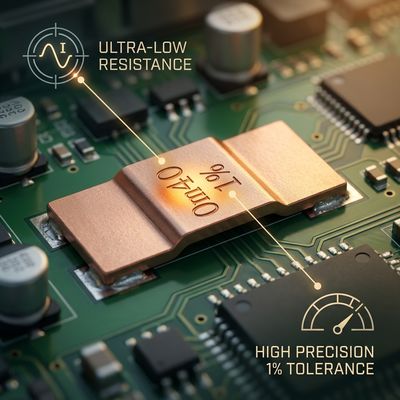

Application reference showing 2512 Size 0.001Ω (1m Ohm) 6W Metal Shunt Chip Resistor in power supply and motor control circuits
Application reference: 2512 Size 0.001Ω (1m Ohm) 6W Metal Shunt Chip Resistor for Power Supplies and Motor Control
