100A 18*45mm Power Fuse Industrial Grade Circuit Protection High Quality RoHS Compliant

Place of Origin: Made in China
Brand Name: WALTER
Certification: UL
Model Number: WH42-100-M6
Product Details
Place of Origin:
Made in China
Brand Name:
WALTER
Certification:
UL
Model Number:
WH42-100-M6
Minimum Order Quantity:
100
Price:
Negotiable
Standard Packaging:
box
Delivery Time:
40-50day
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Name:
Power Fuses
Size:
18*45mm
Safety Approvals:
UL248-1/-13
Rated Current:
100A
Breaking Capacitiy:
700VAC/50KA; 700VDC/50KA
Installation way:
Stud-mount
Highlight:

100A power fuse industrial grade

,

18x45mm power fuse RoHS compliant

,

high current power fuse circuit protection

Product Description
100A 18×45mm Power Fuse - Industrial Grade Circuit Protection
100A Power Fuses 18×45mm provide reliable overcurrent protection for electrical circuits. This stud-mount fuse from WALTER delivers consistent performance with standard tolerance and rated power, offering designers a compact solution that maintains steady performance under load and temperature variations.
Technical Specifications
Parameter Specification
Product Name Power Fuses
Size 18×45mm
Safety Approvals UL248-1/-13
Rated Current 100A
Breaking Capacity 700VAC/50KA; 700VDC/50KA
Installation Method Stud-mount
Model Number WH42-100-M6
Certification UL
Key Features
  • Compact 18×45mm stud-mount design suitable for industrial applications
  • RoHS / REACH compliant construction for lead-free manufacturing
  • High breaking capacity for robust circuit protection
  • UL safety approvals ensure reliability and compliance
Applications
This fuse is ideal for current sensing, power supplies, industrial control systems, and consumer electronics. The ceramic construction and stable electrical performance help designers meet tight tolerances in current sensing, power conversion, and protection circuits, while the compact 18×45mm body conserves valuable space in layouts.
Quality & Manufacturing Advantages
Purchasing directly from the manufacturer ensures competitive pricing with short lead times. Every batch undergoes comprehensive electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are consistently delivered.
Packaging & Quality Assurance
Supplied in packaging suitable for industrial assembly processes. All shipments are RoHS and REACH compliant and include certificates of compliance upon request. Contact us for samples, datasheets, and volume pricing tailored to your specific project requirements.

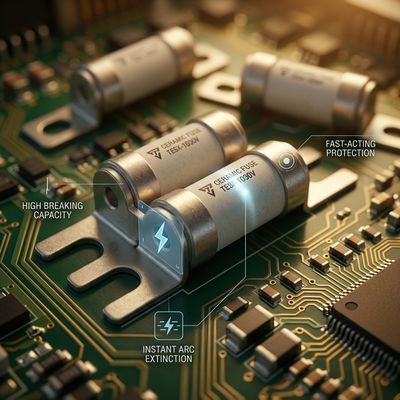

Application scene showing 100A Power Fuses 18×45mm Overcurrent Protection Fuse in electrical circuit implementation
Application reference: 100A Power Fuses 18×45mm Overcurrent Protection Fuse For Electrical Circuits
