3mΩ(0.003 Ohm) 2512 Current Shunt Resistor 4W ±1% ESR Ellon High Precision SMD

Place of Origin: Made in China
Brand Name: Ellon
Certification: RoHS / REACH
Model Number: ESR25F4WR003K04G
Product Details
Place of Origin:
Made in China
Brand Name:
Ellon
Certification:
RoHS / REACH
Model Number:
ESR25F4WR003K04G
Minimum Order Quantity:
4000
Price:
Negotiable
Standard Packaging:
4000
Delivery Time:
3-5 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Features:
High Power,Low Temperature
Manufacturer:
Ellon
Series:
ESR
Size:
2512
Resistance Range:
3mΩ(0.003 Ohm)
Tolerance:
±1%
Power Rating:
4W
Operating Temperature Range:
-55°C To +175°C
Temperature Coefficient:
±50 Ppm/°C
Material:
Karma
Per Reel:
4000
Applications:
Current Sensing, Power Supplies, Motor Control, Battery Management
Highlight:

2512 current shunt resistor 4W

,

high precision SMD shunt resistor

,

3mΩ current shunt resistor ±1%

Product Description
3mΩ (0.003 Ohm) 2512 Current Shunt Resistor 4W ±1%
2512 Size 0.003Ω (3m Ohm) 4W Metal Shunt Chip Resistor for High Power Current Sensing. This 2512 current shunt resistor from Ellon ESR series delivers 3mΩ(0.003 Ohm) resistance with ±1% tolerance and 4W rated power, giving designers a compact surface-mount part that keeps performance steady under load and temperature.
Technical Specifications
ManufacturerEllon
SeriesESR
Size2512
Resistance Range3mΩ (0.003 Ohm)
Tolerance±1%
Power Rating4W
Operating Temperature Range-55°C to +175°C
Temperature Coefficient±50 ppm/°C
MaterialKarma
Key Features
  • Stable 4W rated power handling for demanding circuits
  • ±1% tolerance for dependable measurement accuracy
  • Low ±50 ppm/°C temperature coefficient that keeps values stable as the board heats up
  • Karma element material for consistent, repeatable performance
  • Compact 2512 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This current shunt resistor suits Current Sensing, Power Supplies, Motor Control, Battery Management. Its Karma construction and stable electrical behaviour help designers meet tight tolerances in current sensing, power conversion and protection circuits, while the 2512 body keeps the layout compact.
Why Choose This Part
Buying directly from the manufacturer keeps the ESR series available at competitive pricing with short lead times. Every batch is electrically tested before packing, so the resistance and tolerance you specify are the values you receive.
Packaging & Quality Assurance
Supplied on tape and reel for automatic pick-and-place assembly, in standard reel quantities for SMT lines. Every shipment is RoHS and REACH compliant and can be accompanied by a certificate of compliance on request. Contact us for samples, datasheets and volume pricing tailored to your project.

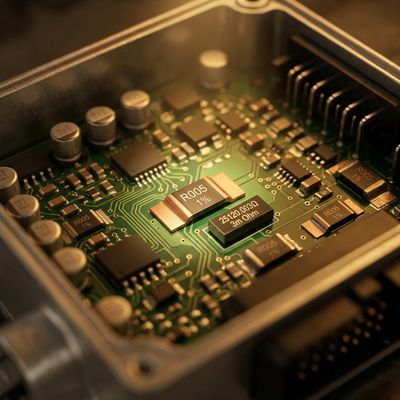

Application reference of 2512 Size 0.003Ω (3m Ohm) 4W Metal Shunt Chip Resistor for High Power Current Sensing
Application reference: 2512 Size 0.003Ω (3m Ohm) 4W Metal Shunt Chip Resistor for High Power Current Sensing
