5mΩ(0.005 Ohm) 3920 Current Shunt Resistor 3W ±1% ESR Ellon High Precision SMD

Place of Origin: Made in China
Brand Name: Ellon
Certification: RoHS / REACH
Model Number: ESR39F3WR005K02G
Product Details
Place of Origin:
Made in China
Brand Name:
Ellon
Certification:
RoHS / REACH
Model Number:
ESR39F3WR005K02G
Minimum Order Quantity:
2000
Price:
Negotiable
Standard Packaging:
2000
Delivery Time:
3-5 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Features:
High Power,Low Temperature
Name:
Current Shunt Resistor
Manufacturer:
Ellon
Series:
ESR
Size:
3920
Resistance Range:
5mΩ(0.005 Ohm)
Tolerance:
±1%
Power Rating:
3W
Operating Temperature Range:
-55°C To +175°C
Temperature Coefficient:
±50 Ppm/°C
Material:
Karma
Per Reel:
2000
Applications:
Current Sensing, Power Supplies, Motor Control, Battery Management
Highlight:

5mΩ current shunt resistor 3W

,

3920 SMD current shunt resistor

,

high precision current shunt resistor ±1%

Product Description
5mΩ (0.005 Ohm) 3920 Current Shunt Resistor 3W ±1%
3920 0.005Ω (5mΩ) 3W Karma Alloy Metal Shunt Resistor for Precision Current Sensing. This 3920 current shunt resistor from Ellon ESR series delivers 5mΩ (0.005 Ohm) resistance with ±1% tolerance and 3W rated power, providing designers with a compact surface-mount component that maintains stable performance under load and temperature variations.
Technical Specifications
NameCurrent Shunt Resistor
ManufacturerEllon
SeriesESR
Size3920
Resistance Range5mΩ (0.005 Ohm)
Tolerance±1%
Power Rating3W
Operating Temperature Range-55°C to +175°C
Temperature Coefficient±50 ppm/°C
Key Features
  • Stable 3W rated power handling for demanding circuits
  • ±1% tolerance for dependable measurement accuracy
  • Low ±50 ppm/°C temperature coefficient that maintains stable values during temperature fluctuations
  • Karma element material for consistent, repeatable performance
  • Compact 3920 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
  • Current Sensing
  • Power Supplies
  • Motor Control
  • Battery Management
The Karma construction and stable electrical behavior help designers meet tight tolerances in current sensing, power conversion, and protection circuits, while the 3920 body maintains a compact layout.
Quality & Packaging
Supplied on tape and reel for automatic pick-and-place assembly in standard reel quantities for SMT lines. Every shipment is RoHS and REACH compliant and can be accompanied by a certificate of compliance upon request. All batches undergo electrical testing before packaging to ensure specified resistance and tolerance values.

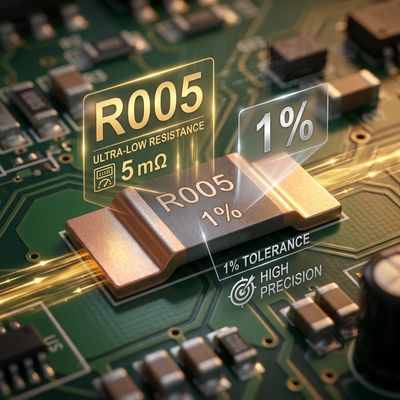

Application reference of 3920 0.005Ω (5mΩ) 3W Karma Alloy Metal Shunt Resistor for Precision Current Sensing
Manufacturer Direct Benefits: Purchasing directly from the manufacturer ensures competitive pricing with short lead times for the ESR series. Contact us for samples, datasheets, and volume pricing tailored to your project requirements.
