Quality 8m ohm（0.008 ohm） 1225(6.4mm*3.2mm) Chip Resistor 3W ±1% HTE Walter High Precision SMD factory

8m ohm（0.008 ohm） 1225(6.4mm*3.2mm) Chip Resistor 3W ±1% HTE Walter High Precision SMD

Name: 8m ohm（0.008 ohm） 1225(6.4mm*3.2mm) Chip Resistor 3W ±1% HTE Walter High Precision SMD
Brand: Shenzhen Shun Hai Technology Co., Ltd.
SKU: HTE2512M3W0R008F
Price: Negotiable USD
Availability: InStock

Place of Origin: Made in China

Brand Name: Walter

Certification: RoHS / REACH

Model Number: HTE2512M3W0R008F

Product Details

Place of Origin:

Made in China

Brand Name:

Walter

Certification:

RoHS / REACH

Model Number:

HTE2512M3W0R008F

Minimum Order Quantity:

4000

Price:

Negotiable

Standard Packaging:

4000

Delivery Time:

3-5 work days

Payment Terms:

T/T

Supply Ability:

Large volume available

Specifications

Features:

High Precision, High Power, Low Temperature Ticket, Low Inductance

Manufacturer:

Walter

Series:

HTE

Size:

1225(6.4mm*3.2mm)

Resistance Range:

8m Ohm（0.008 Ohm）

Tolerance:

±1%

Power Rating:

Operating Temperature Range:

-55°C To +155°C

Temperature Coefficient:

±100 Ppm/°C

Material:

MnCu Alloy

Per Reel:

4000

Applications:

Current Sensing, Power Supply, Motor Control, Battery Management, Frequency Converter, 5G Base Station, LED Lighting,

Highlight:

8m ohm high precision chip resistor

1225 size SMD resistor

3W wide terminal resistor

Product Description

8mΩ (0.008Ω) 1225 Chip Resistor - 3W ±1% HTE Series

High Power Low TCR Resistors Ultra Low Ohm Resistor 8mΩ. This 1225 (6.4mm × 3.2mm) chip resistor from Walter HTE series delivers 8mΩ (0.008Ω) resistance with ±1% tolerance and 3W rated power, providing designers with a compact surface-mount component that maintains stable performance under load and temperature variations.

Technical Specifications

Manufacturer	Walter
Series	HTE
Size	1225 (6.4mm × 3.2mm)
Resistance Range	8mΩ (0.008Ω)
Tolerance	±1%
Power Rating	3W
Operating Temperature Range	-55°C to +155°C
Temperature Coefficient	±100 ppm/°C
Material	MnCu Alloy

Key Features

Stable 3W rated power handling for demanding circuits
±1% tolerance for dependable measurement accuracy
Low ±100 ppm/°C temperature coefficient that maintains value stability during temperature fluctuations
MnCu alloy element material for consistent, repeatable performance
Compact 1225 (6.4mm × 3.2mm) SMD footprint suitable for high-density reflow assembly
RoHS / REACH compliant construction for lead-free manufacturing

Applications

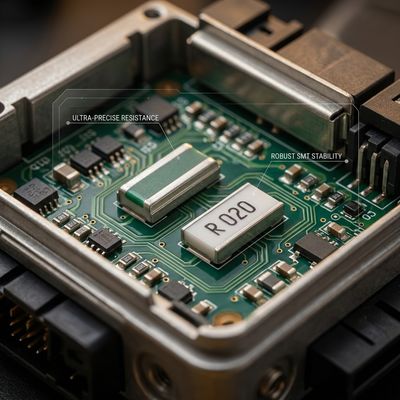

This chip resistor is ideal for current sensing, power supply systems, motor control, battery management, frequency converters, 5G base stations, and LED lighting applications. The MnCu alloy construction and stable electrical behavior help designers achieve tight tolerances in current sensing, power conversion, and protection circuits, while the compact 1225 body maintains efficient board space utilization.

Current Sensing Power Supply Motor Control Battery Management Frequency Converter 5G Base Station LED Lighting

Manufacturer Advantages

Purchasing directly from the manufacturer ensures the HTE series remains available at competitive pricing with short lead times. Every production batch undergoes comprehensive electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are precisely delivered.

Packaging & Quality Assurance

Supplied on tape and reel for automated pick-and-place assembly, in standard reel quantities optimized for SMT production lines. All shipments comply with RoHS and REACH standards and include certificates of compliance upon request. Contact us for samples, detailed datasheets, and volume pricing tailored to your specific project requirements.
