Quality 20m ohm（0.02 ohm） 1225 Wide Terminal Chip Resistor 3W ±1% HTE Walter High Precision SMD factory

20m ohm（0.02 ohm） 1225 Wide Terminal Chip Resistor 3W ±1% HTE Walter High Precision SMD

Name: 20m ohm（0.02 ohm） 1225 Wide Terminal Chip Resistor 3W ±1% HTE Walter High Precision SMD
Brand: Shenzhen Shun Hai Technology Co., Ltd.
SKU: HTE2512M3W0R020F
Price: Negotiable USD
Availability: InStock

Place of Origin: Made in China

Brand Name: Walter

Certification: RoHS / REACH

Model Number: HTE2512M3W0R020F

Product Details

Place of Origin:

Made in China

Brand Name:

Walter

Certification:

RoHS / REACH

Model Number:

HTE2512M3W0R020F

Minimum Order Quantity:

4000

Price:

Negotiable

Standard Packaging:

4000

Delivery Time:

3-5 work days

Payment Terms:

T/T

Supply Ability:

Large volume available

Specifications

Features:

High Precision, High Power, Low Temperature Ticket, Low Inductance

Name:

Wide Terminal Resistor

Manufacturer:

Walter

Series:

HTE

Size:

1225(6.4mm*3.2mm)

Resistance Range:

20m Ohm（0.02 Ohm）

Tolerance:

±1%

Power Rating:

Operating Temperature Range:

-55°C To +155°C

Temperature Coefficient:

±50 Ppm/°C

Material:

MnCu Alloy

Per Reel:

4000

Applications:

Current Sensing, Power Supply, Motor Control, Battery Management, Frequency Converter, 5G Base Station, LED Lighting,

Highlight:

20m ohm wide terminal resistor

1225 chip resistor 3W

high precision SMD resistor

Product Description

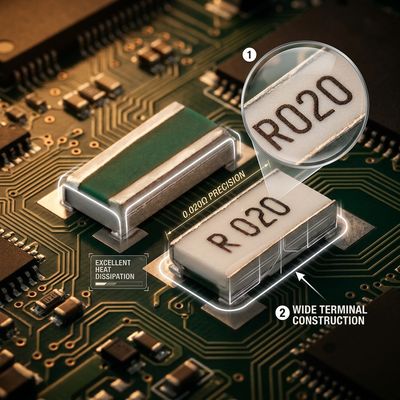

20mΩ (0.02Ω) 1225 Wide Terminal Chip Resistor 3W ±1%

3W Wide Terminal Resistor 20mΩ High Power Surface Mount Resistor 1225 Size. This 1225 wide terminal chip resistor from Walter HTE series delivers 20mΩ (0.02Ω) resistance with ±1% tolerance and 3W rated power, providing designers with a compact surface-mount component that maintains stable performance under load and temperature variations.

Technical Specifications

Name	Wide Terminal Resistor
Manufacturer	Walter
Series	HTE
Size	1225 (6.4mm × 3.2mm)
Resistance Range	20mΩ (0.02Ω)
Tolerance	±1%
Power Rating	3W
Operating Temperature Range	-55°C to +155°C
Temperature Coefficient	±50 ppm/°C

Key Features

Stable 3W rated power handling for demanding circuits
±1% tolerance for dependable measurement accuracy
Low ±50 ppm/°C temperature coefficient that maintains stable values during temperature fluctuations
MnCu alloy element material for consistent, repeatable performance
Compact 1225 SMD footprint suitable for high-density reflow assembly
RoHS / REACH compliant construction for lead-free manufacturing

Applications

This wide terminal chip resistor is ideal for current sensing, power supply systems, motor control, battery management, frequency converters, 5G base stations, and LED lighting applications. The MnCu alloy construction and stable electrical characteristics help designers achieve tight tolerances in current sensing, power conversion, and protection circuits, while the compact 1225 body enables space-efficient layouts.

Manufacturing Advantages

Sourcing directly from the manufacturer ensures the HTE series is available at competitive pricing with short lead times. Every production batch undergoes comprehensive electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are precisely delivered.

Packaging & Quality Assurance

Supplied on tape and reel for automated pick-and-place assembly, with standard reel quantities optimized for SMT production lines. All shipments comply with RoHS and REACH regulations and include certificates of compliance upon request. Contact us for samples, datasheets, and volume pricing customized for your project requirements.
