2.74Ω 1206 Chip Resistor 1W ±1% Ellon High Precision SMD RoHS Compliant

Place of Origin: Made in China
Brand Name: Ellon
Certification: RoHS / REACH
Model Number: EAM16FT2R74DES
Product Details
Place of Origin:
Made in China
Brand Name:
Ellon
Certification:
RoHS / REACH
Model Number:
EAM16FT2R74DES
Minimum Order Quantity:
5000
Price:
Negotiable
Standard Packaging:
Tape and reel
Delivery Time:
5-8 week days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Package Size:
1206 (3.2mm × 1.6mm)
Tolerance:
±1%
Temperature Coefficient:
±50 Ppm/°C
Operating Temperature:
-55°C To +155°C
Power Rating:
1W
Resistance:
2.74Ω
Highlight:

2.74Ω 1206 chip resistor

,

1W high precision SMD resistor

,

anti-sulfur metal film chip resistor

Product Description
EAM16FT2R74DES 1206 2.74Ω 1W Anti-Sulfur Metal Film Chip Resistor
This 1206 chip resistor from Ellon delivers 2.74Ω resistance with ±1% tolerance and 1W rated power, providing designers with a compact surface-mount component that maintains stable performance under load and temperature variations in harsh environments.
Technical Specifications
Package Size 1206 (3.2mm × 1.6mm)
Tolerance ±1%
Temperature Coefficient ±50 ppm/°C
Operating Temperature -55°C to +155°C
Power Rating 1W
Resistance 2.74Ω
Model Number EAM16FT2R74DES
Key Features
  • Stable 1W rated power handling for demanding circuits
  • ±1% tolerance for dependable measurement accuracy
  • Low ±50 ppm/°C temperature coefficient that maintains value stability during temperature fluctuations
  • Compact 1206 SMD footprint suitable for high-density reflow assembly
  • RoHS and REACH compliant construction for lead-free manufacturing
  • Anti-sulfur metal film construction for harsh environment operation
Applications
This chip resistor is ideal for current sensing applications, power supplies, industrial control systems, and consumer electronics. The ceramic construction and stable electrical characteristics help designers achieve tight tolerances in current sensing, power conversion, and protection circuits while maintaining a compact layout.
Quality & Manufacturing Advantages
Sourced directly from the manufacturer, this resistor series offers competitive pricing with short lead times. Every batch undergoes comprehensive electrical testing before packaging to ensure specified resistance and tolerance values are delivered accurately.
Packaging & Compliance
Supplied on tape and reel for automated pick-and-place assembly in standard reel quantities suitable for SMT production lines. All shipments comply with RoHS and REACH standards, with certificates of compliance available upon request.

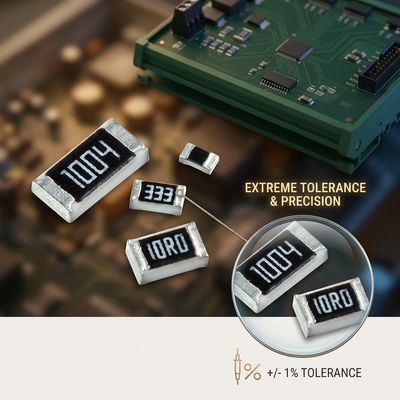

EAM16FT2R74DES 1206 2.74Ω 1W Anti-Sulfur Metal Film Chip Resistor application reference
Application reference: EAM16FT2R74DES 1206 2.74Ω 1W Anti-Sulfur Metal Film Chip Resistor
