18Ω 2512 Chip Resistor 2W at 70°C Ever Ohms High Precision SMD RoHS Compliant

Place of Origin: Made in China
Brand Name: Ever Ohms
Certification: RoHS / REACH
Model Number: CRH2512F18R0E04Z
Product Details
Place of Origin:
Made in China
Brand Name:
Ever Ohms
Certification:
RoHS / REACH
Model Number:
CRH2512F18R0E04Z
Minimum Order Quantity:
4000
Price:
Negotiable
Standard Packaging:
Tape and reel
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Resistance tolerance:
±1%
Working voltage:
200V
Package size:
2512 (6.4mm × 3.2mm)
Temperature coefficient:
±100ppm/°C
Nominal resistance:
18Ω
Rated power:
2W At 70°C
Highlight:

18Ω 2512 chip resistor 2W

,

high precision SMD resistor

,

RoHS compliant thick film resistor

Product Description
18Ω 2512 Chip Resistor 2W at 70°C
CRH2512F18R0E04Z 2512 18Ω 2W High-Power Thick-Film Chip Resistor with ±1% Tolerance. This 2512 chip resistor from Ever Ohms delivers 18Ω resistance with standard tolerance and 2W at 70°C rated power, giving designers a compact surface-mount part that maintains stable performance under load and temperature variations.
Technical Specifications
Parameter Specification
Resistance Tolerance ±1%
Working Voltage 200V
Package Size 2512 (6.4mm × 3.2mm)
Temperature Coefficient ±100ppm/°C
Nominal Resistance 18Ω
Rated Power 2W at 70°C
Model Number CRH2512F18R0E04Z
Key Features
  • Stable 2W at 70°C rated power handling for demanding circuits
  • Low ±100ppm/°C temperature coefficient that maintains value stability as the board heats up
  • Compact 2512 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This chip resistor is ideal for current sensing, power supplies, industrial control systems, and consumer electronics. Its ceramic construction and stable electrical behavior help designers meet tight tolerances in current sensing, power conversion, and protection circuits, while the 2512 package maintains a compact layout.
Why Choose This Part
Purchasing directly from the manufacturer ensures competitive pricing with short lead times. Every batch undergoes electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are precisely delivered.
Packaging & Quality Assurance
Supplied on tape and reel for automatic pick-and-place assembly, in standard reel quantities for SMT production lines. All shipments are RoHS and REACH compliant and can be accompanied by a certificate of compliance upon request. Contact us for samples, datasheets, and volume pricing tailored to your project requirements.

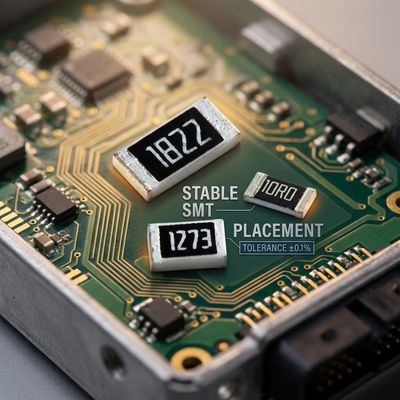

CRH2512F18R0E04Z 2512 18Ω 2W High-Power Thick-Film Chip Resistor application reference
Application reference: CRH2512F18R0E04Z 2512 18Ω 2W High-Power Thick-Film Chip Resistor
