110 Ω 2512 Chip Resistor 2 W at 70°C ambient ±1% (F Grade) Ever Ohms High Precision SMD

Place of Origin: Made in China
Brand Name: Ever Ohms
Certification: RoHS / REACH
Model Number: CRH2512F110RE04Z
Product Details
Place of Origin:
Made in China
Brand Name:
Ever Ohms
Certification:
RoHS / REACH
Model Number:
CRH2512F110RE04Z
Minimum Order Quantity:
4000
Price:
Negotiable
Standard Packaging:
Tape and reel
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Tolerance:
±1% (F Grade)
Operating Temperature:
−55°C To +155°C
Nominal Resistance:
110 Ω
Package Dimensions:
6.35 Mm × 3.20 Mm
Rated Power:
2 W At 70°C Ambient
TCR:
±100 Ppm/°C
Highlight:

110 Ω 2512 chip resistor 2W

,

high precision SMD resistor

,

thick film chip resistor with warranty

Product Description
110 Ω 2512 Chip Resistor 2W at 70°C Ambient ±1% (F Grade)
CRH2512F110RE04Z 2512 110Ω 2W High-Power Thick-Film Chip Resistor with ±1% Tolerance. This 2512 chip resistor from Ever Ohms delivers 110 Ω resistance with ±1% (F Grade) tolerance and 2 W at 70°C ambient rated power, giving designers a compact surface-mount part that maintains consistent performance under load and temperature variations.
Technical Specifications
Tolerance±1% (F Grade)
Operating Temperature−55°C to +155°C
Nominal Resistance110 Ω
Package Dimensions6.35 mm × 3.20 mm
Rated Power2 W at 70°C ambient
TCR±100 ppm/°C
Model NumberCRH2512F110RE04Z
Key Features
  • Stable 2 W at 70°C ambient rated power handling for demanding circuits
  • ±1% (F Grade) tolerance for dependable measurement accuracy
  • Low ±100 ppm/°C temperature coefficient that maintains value stability during board heating
  • Compact 2512 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This chip resistor is ideal for current sensing, power supplies, industrial control systems, and consumer electronics. Its ceramic construction and stable electrical characteristics help designers achieve tight tolerances in current sensing, power conversion, and protection circuits, while the 2512 package maintains compact board layouts.
Why Choose This Part
Purchasing directly from the manufacturer ensures competitive pricing with short lead times. Every batch undergoes comprehensive electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are precisely delivered.
Packaging & Quality Assurance
Supplied on tape and reel for automated pick-and-place assembly in standard reel quantities for SMT production lines. All shipments comply with RoHS and REACH standards and include certificates of compliance upon request. Contact us for samples, datasheets, and volume pricing customized for your project requirements.

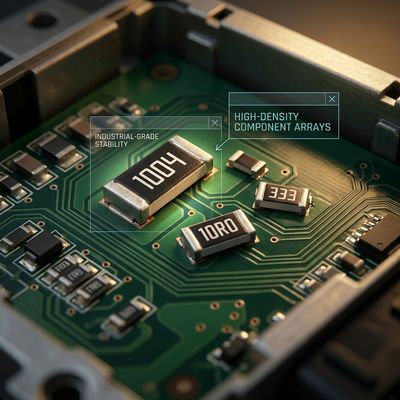

Application reference: CRH2512F110RE04Z 2512 110Ω 2W High-Power Thick-Film Chip Resistor with ±1% Tolerance
