180 kΩ 1206 Chip Resistor 0.5 W @ 70 °C ambient ±5% Ever Ohms High Precision SMD

Place of Origin: Made in China
Brand Name: Ever Ohms
Certification: RoHS / REACH
Model Number: CRH1206J180KP05Z
Product Details
Place of Origin:
Made in China
Brand Name:
Ever Ohms
Certification:
RoHS / REACH
Model Number:
CRH1206J180KP05Z
Minimum Order Quantity:
5000
Price:
Negotiable
Standard Packaging:
Tape and reel
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Tolerance:
±5%
Max. working voltage:
200 V
Nominal resistance:
180 KΩ
Package size:
3.2 × 1.6 × 0.6 Mm
Rated power:
0.5 W @ 70 °C Ambient
Operating temperature:
−55 °C To +155 °C
Highlight:

180 kΩ 1206 chip resistor

,

0.5 W high precision SMD resistor

,

thick film chip resistor with warranty

Product Description
180 kΩ 1206 Chip Resistor 0.5W High Precision SMD
UniOhm CRH1206J180KP05Z 180 kΩ 0.5W High Power Thick Film Chip Resistor in 1206 Package. This 1206 chip resistor from Ever Ohms delivers 180 kΩ resistance with ±5% tolerance and 0.5 W @ 70 °C ambient rated power, giving designers a compact surface-mount part that maintains stable performance under load and temperature variations.
Technical Specifications
Tolerance ±5%
Max. working voltage 200 V
Nominal resistance 180 kΩ
Package size 3.2 × 1.6 × 0.6 mm
Rated power 0.5 W @ 70 °C ambient
Operating temperature −55 °C to +155 °C
Model Number CRH1206J180KP05Z
Key Features
  • Stable 0.5 W @ 70 °C ambient rated power handling for demanding circuits
  • ±5% tolerance for dependable measurement accuracy
  • Compact 1206 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This chip resistor is ideal for current sensing, power supplies, industrial control systems, and consumer electronics. Its ceramic construction and stable electrical behavior help designers meet tight tolerances in current sensing, power conversion, and protection circuits, while the 1206 package maintains a compact layout.
Quality & Value Benefits
Purchasing directly from the manufacturer ensures competitive pricing with short lead times. Every batch undergoes electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are delivered accurately.
Packaging & Compliance
Supplied on tape and reel for automatic pick-and-place assembly in standard reel quantities for SMT production lines. All shipments are RoHS and REACH compliant, with certificates of compliance available upon request. Contact us for samples, datasheets, and volume pricing tailored to your project requirements.

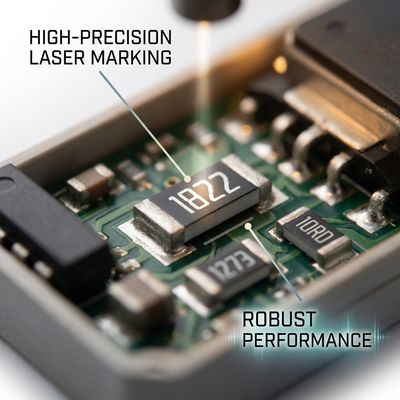

Application reference showing UniOhm CRH1206J180KP05Z 180 kΩ 0.5W High Power Thick Film Chip Resistor in 1206 package
Application reference: UniOhm CRH1206J180KP05Z 180 kΩ 0.5W High Power Thick Film Chip Resistor
