562Ω 1206 Chip Resistor 0.5W ±1% Ever Ohms High Precision SMD RoHS Compliant

Place of Origin: Made in China
Brand Name: Ever Ohms
Certification: RoHS / REACH
Model Number: CRH1206F562RP05Z
Product Details
Place of Origin:
Made in China
Brand Name:
Ever Ohms
Certification:
RoHS / REACH
Model Number:
CRH1206F562RP05Z
Minimum Order Quantity:
5000
Price:
Negotiable
Standard Packaging:
Tape and reel
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Nominal resistance:
562Ω
Package size:
1206 (3.2×1.6mm)
Operating temperature:
-55℃ ~ +155℃
Temperature coefficient:
±100ppm/℃
Tolerance:
±1%
Rated power:
0.5W
Highlight:

562Ω 1206 chip resistor

,

0.5W high precision SMD resistor

,

RoHS compliant thick film resistor

Product Description
CRH1206F562RP05Z 1206 Chip Resistor - 562Ω 0.5W ±1% High Precision
CRH1206F562RP05Z 1206 package 562Ω 0.5W high power thick film chip resistor designed for industrial applications. This surface-mount component from Ever Ohms provides reliable 562Ω resistance with ±1% tolerance and 0.5W rated power, offering stable performance under varying load and temperature conditions.
Technical Specifications
Parameter Specification
Nominal resistance 562Ω
Package size 1206 (3.2*1.6mm)
Operating temperature -55℃ ~ +155℃
Temperature coefficient ±100ppm/℃
Tolerance ±1%
Rated power 0.5W
Model Number CRH1206F562RP05Z
Key Features
  • Stable 0.5W rated power handling for demanding circuits
  • ±1% tolerance for dependable measurement accuracy
  • Low ±100ppm/℃ temperature coefficient maintains value stability during temperature fluctuations
  • Compact 1206 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This chip resistor is ideal for current sensing, power supplies, industrial control systems, and consumer electronics. The ceramic construction and stable electrical characteristics help designers achieve tight tolerances in current sensing, power conversion, and protection circuits while maintaining a compact layout.
Quality & Manufacturing Advantages
Sourced directly from the manufacturer, this resistor series offers competitive pricing with short lead times. Every batch undergoes comprehensive electrical testing to ensure specified resistance and tolerance values are delivered accurately.
Packaging & Compliance
Supplied on tape and reel for automated pick-and-place assembly in standard reel quantities suitable for SMT production lines. All shipments are RoHS and REACH compliant, with certificates of compliance available upon request.

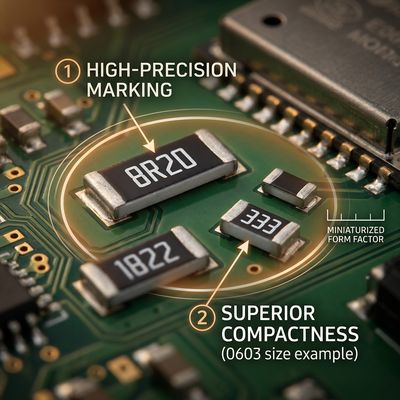

CRH1206F562RP05Z 1206 Package 562Ω 0.5W High Power Thick Film Chip Resistor application reference
Application reference: CRH1206F562RP05Z 1206 Package 562Ω 0.5W High Power Thick Film Chip Resistor
