470KΩ 1206 Chip Resistor 0.5W Ever Ohms High Precision SMD RoHS Compliant

Place of Origin: Made in China
Brand Name: Ever Ohms
Certification: RoHS / REACH
Model Number: CRH1206F470KP05Z
Product Details
Place of Origin:
Made in China
Brand Name:
Ever Ohms
Certification:
RoHS / REACH
Model Number:
CRH1206F470KP05Z
Minimum Order Quantity:
5000
Price:
Negotiable
Standard Packaging:
Tape and reel
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Nominal resistance:
470KΩ
Temperature coefficient:
±100ppm/℃
Package size:
1206 (3.2mm × 1.55mm × 0.6mm)
Max working voltage:
200V
Resistance tolerance:
±1%
Power rating:
0.5W
Highlight:

470KΩ 1206 chip resistor

,

0.5W SMD resistor RoHS compliant

,

high precision thick film resistor

Product Description
470KΩ 1206 Chip Resistor 0.5W High Precision SMD
CRH1206F470KP05Z 470KΩ 0.5W High Power Thick Film Resistor in 1206 Package. This 1206 chip resistor from Ever Ohms delivers 470KΩ resistance with standard tolerance and 0.5W rated power, providing designers with a compact surface-mount component that maintains stable performance under load and temperature variations.
Technical Specifications
Parameter Specification
Nominal resistance 470KΩ
Temperature coefficient ±100ppm/℃
Package size 1206 (3.2mm × 1.55mm × 0.6mm)
Max working voltage 200V
Resistance tolerance ±1%
Power rating 0.5W
Model Number CRH1206F470KP05Z
Key Features
  • Stable 0.5W rated power handling for demanding circuits
  • Low ±100ppm/℃ temperature coefficient that maintains value stability as board temperature increases
  • Compact 1206 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This chip resistor is ideal for current sensing, power supplies, industrial control systems, and consumer electronics. The ceramic construction and stable electrical characteristics help designers achieve tight tolerances in current sensing, power conversion, and protection circuits, while the 1206 package maintains compact layout requirements.
Quality & Manufacturing Advantages
Sourcing directly from the manufacturer ensures competitive pricing with short lead times. Every production batch undergoes comprehensive electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are precisely delivered.
Packaging & Compliance
Supplied on tape and reel for automated pick-and-place assembly, in standard reel quantities optimized for SMT production lines. All shipments comply with RoHS and REACH standards and include certificates of compliance upon request. Contact us for samples, datasheets, and volume pricing tailored to your project requirements.

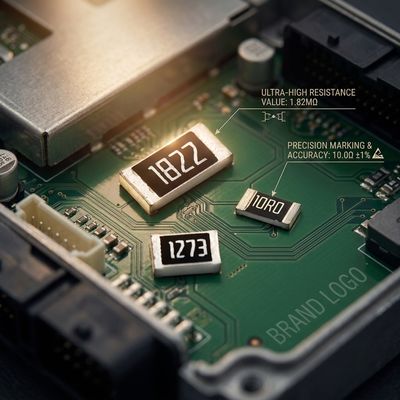

CRH1206F470KP05Z 470KΩ 0.5W High Power Thick Film Resistor application reference
Application reference: CRH1206F470KP05Z 470KΩ 0.5W High Power Thick Film Resistor in 1206 Package
