39 Ω 1206 Chip Resistor 0.5 W Ever Ohms High Precision SMD RoHS Compliant

Place of Origin: Made in China
Brand Name: Ever Ohms
Certification: RoHS / REACH
Model Number: CRH1206F39R0P05Z
Product Details
Place of Origin:
Made in China
Brand Name:
Ever Ohms
Certification:
RoHS / REACH
Model Number:
CRH1206F39R0P05Z
Minimum Order Quantity:
5000
Price:
Negotiable
Standard Packaging:
Tape and reel
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Resistance tolerance:
±1%
Max working voltage:
200 V DC
Nominal resistance:
39 Ω
Package dimensions:
3.05 × 1.60 × 0.55 Mm
Rated power:
0.5 W
Temperature coefficient:
±100 PPM/°C
Highlight:

39 Ω 1206 chip resistor

,

0.5 W high precision SMD resistor

,

RoHS compliant thick film resistor

Product Description
39 Ω 1206 Chip Resistor 0.5 W High Precision SMD
CRH1206F39R0P05Z 39Ω 0.5W High Power Thick Film Chip Resistor in 1206 Package. This 1206 chip resistor from Ever Ohms delivers 39 Ω resistance with standard tolerance and 0.5 W rated power, providing designers with a compact surface-mount component that maintains stable performance under load and temperature variations.
Technical Specifications
Parameter Specification
Resistance tolerance ±1%
Max working voltage 200 V DC
Nominal resistance 39 Ω
Package dimensions 3.05 × 1.60 × 0.55 mm
Rated power 0.5 W
Temperature coefficient ±100 PPM/°C
Model Number CRH1206F39R0P05Z
Key Features
  • Stable 0.5 W rated power handling for demanding circuits
  • Low ±100 PPM/°C temperature coefficient that maintains value stability as the board heats up
  • Compact 1206 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This chip resistor is ideal for current sensing, power supplies, industrial control systems, and consumer electronics. Its ceramic construction and stable electrical behavior help designers meet tight tolerances in current sensing, power conversion, and protection circuits, while the 1206 package maintains a compact layout.
  • Current sensing circuits
  • Power supply systems
  • Industrial control applications
  • Consumer electronics
  • Power conversion circuits
  • Protection circuits

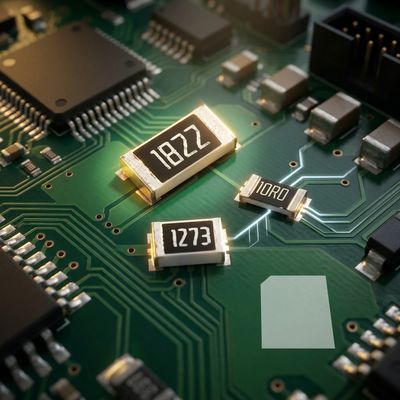

CRH1206F39R0P05Z 39Ω 0.5W High Power Thick Film Chip Resistor application reference
Manufacturer Advantages
Sourcing directly from the manufacturer ensures competitive pricing with short lead times. Every production batch undergoes comprehensive electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are precisely delivered.
Packaging & Quality Assurance
Supplied on tape and reel for automated pick-and-place assembly, in standard reel quantities optimized for SMT production lines. All shipments comply with RoHS and REACH regulations and can be accompanied by certificates of compliance upon request. Contact us for samples, datasheets, and volume pricing tailored to your project requirements.
