36Ω, ±1% 1206 Chip Resistor 0.5W @70℃ Ever Ohms High Precision SMD RoHS Compliant

Place of Origin: Made in China
Brand Name: Ever Ohms
Certification: RoHS / REACH
Model Number: CRH1206F36R0P05Z
Product Details
Place of Origin:
Made in China
Brand Name:
Ever Ohms
Certification:
RoHS / REACH
Model Number:
CRH1206F36R0P05Z
Minimum Order Quantity:
5000
Price:
Negotiable
Standard Packaging:
Tape and reel
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Rated power:
0.5W @70℃
Operating temperature:
−55℃ To +155℃
Resistance:
36Ω, ±1%
Insulation resistance:
≥10GΩ
Max. working voltage:
200V Class
TCR:
±100ppm/℃
Highlight:

1206 chip resistor 36Ω high precision

,

SMD resistor 0.5W RoHS compliant

,

thick film chip resistor ±1% tolerance

Product Description
36Ω, ±1% 1206 Chip Resistor 0.5W @70℃
CRH1206F36R0P05Z 36Ω 0.5W High-Power Thick Film Chip Resistor in 1206 Footprint. This 1206 chip resistor from Ever Ohms delivers 36Ω, ±1% resistance with standard tolerance and 0.5W @70℃ rated power, giving designers a compact surface-mount part that maintains stable performance under load and temperature variations.
Technical Specifications
Parameter Specification
Rated power 0.5W @70℃
Operating temperature −55℃ to +155℃
Resistance 36Ω, ±1%
Insulation resistance ≥10GΩ
Max. working voltage 200V class
TCR ±100ppm/℃
Model Number CRH1206F36R0P05Z
Key Features
  • Stable 0.5W @70℃ rated power handling for demanding circuits
  • Low ±100ppm/℃ temperature coefficient that maintains value stability as the board heats up
  • Compact 1206 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This chip resistor is ideal for current sensing, power supplies, industrial control systems, and consumer electronics. Its ceramic construction and stable electrical behavior help designers meet tight tolerances in current sensing, power conversion, and protection circuits, while the 1206 package maintains compact board layouts.
Manufacturing Advantages
Purchasing directly from the manufacturer ensures competitive pricing with short lead times. Every batch undergoes comprehensive electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are precisely delivered.
Packaging & Quality Assurance
Supplied on tape and reel for automated pick-and-place assembly in standard reel quantities for SMT production lines. All shipments comply with RoHS and REACH standards and include certificates of compliance upon request. Contact us for samples, datasheets, and volume pricing tailored to your project requirements.

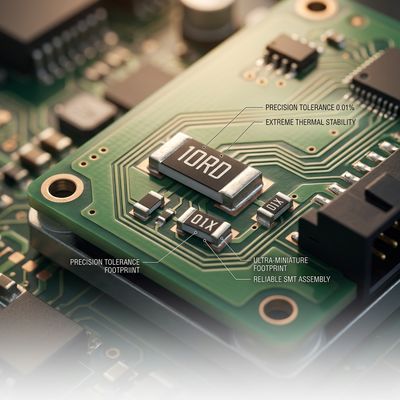

CRH1206F36R0P05Z 36Ω 0.5W High-Power Thick Film Chip Resistor application reference
Application reference: CRH1206F36R0P05Z 36Ω 0.5W High-Power Thick Film Chip Resistor
