330Ω 1206 Chip Resistor 0.5W @ 70°C ambient ±1% Ever Ohms High Precision SMD

Place of Origin: Made in China
Brand Name: Ever Ohms
Certification: RoHS / REACH
Model Number: CRH1206F330RP05Z
Product Details
Place of Origin:
Made in China
Brand Name:
Ever Ohms
Certification:
RoHS / REACH
Model Number:
CRH1206F330RP05Z
Minimum Order Quantity:
5000
Price:
Negotiable
Standard Packaging:
Tape and reel
Delivery Time:
5-8 work days
Payment Terms:
T/T
Supply Ability:
Large volume available
Specifications
Tolerance:
±1%
Operating temperature:
-55℃ ~ +155℃
Nominal resistance:
330Ω
Dimensions:
L 3.05±0.10mm, W 1.60±0.20mm, H 0.55±0.15mm
Rated power:
0.5W @ 70°C Ambient
Max working voltage:
200V
Highlight:

330Ω 1206 chip resistor high precision

,

0.5W 1206 chip resistor thick film

,

SMD resistor 1% tolerance high power

Product Description
330Ω 1206 Chip Resistor 0.5W @ 70°C Ambient ±1%
CRH Series 1206 High Power Thick Film Chip Resistor 330Ω 0.5W with ±1% Tolerance. This 1206 chip resistor from Ever Ohms delivers 330Ω resistance with ±1% tolerance and 0.5W @ 70°C ambient rated power, giving designers a compact surface-mount part that maintains stable performance under load and temperature variations.
Technical Specifications
Parameter Specification
Tolerance ±1%
Operating Temperature -55℃ ~ +155℃
Nominal Resistance 330Ω
Dimensions L 3.05±0.10mm, W 1.60±0.20mm, H 0.55±0.15mm
Rated Power 0.5W @ 70°C ambient
Max Working Voltage 200V
Model Number CRH1206F330RP05Z
Key Features
  • Stable 0.5W @ 70°C ambient rated power handling for demanding circuits
  • ±1% tolerance for dependable measurement accuracy
  • Compact 1206 SMD footprint suitable for high-density reflow assembly
  • RoHS / REACH compliant construction for lead-free manufacturing
Applications
This chip resistor is ideal for current sensing, power supplies, industrial control systems, and consumer electronics. Its ceramic construction and stable electrical behavior help designers meet tight tolerances in current sensing, power conversion, and protection circuits, while the 1206 package maintains a compact layout.
Manufacturing Advantages
Purchasing directly from the manufacturer ensures competitive pricing with short lead times. Every batch undergoes comprehensive electrical testing before packaging, guaranteeing that the specified resistance and tolerance values are precisely delivered.
Packaging & Quality Assurance
Supplied on tape and reel for automatic pick-and-place assembly in standard reel quantities suitable for SMT production lines. All shipments comply with RoHS and REACH standards and include certificates of compliance upon request. Contact us for samples, datasheets, and volume pricing tailored to your project requirements.

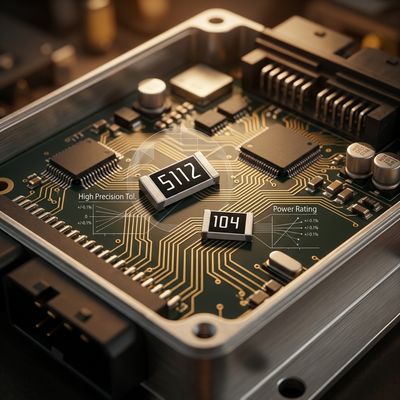

CRH Series 1206 High Power Thick Film Chip Resistor 330Ω 0.5W application reference
Application reference: CRH Series 1206 High Power Thick Film Chip Resistor 330Ω 0.5W
